Boston MBTA Dual Direction LED Map (GLX + B Branch Consolidation) - Updates In Real Time!

Regular price $199.00

20% OFF BLACK FRIDAY - CYBER MONDAY SALE!

FREE SHIPPING ON THIS PRODUCT! The only conditions are that nothing else can be in your cart and the ship-to address must by in the continental USA. We offer free shipping on orders placed for this item only.

Tracks trains on the MBTA in and around Boston, showing live locations as each vehicle moves around the network.

Updated Version for late 2022 - Including Green Line Extension and B Branch Station Consolidation!

Tracks trains on the MBTA in Boston, showing live locations as each vehicle moves around the network.

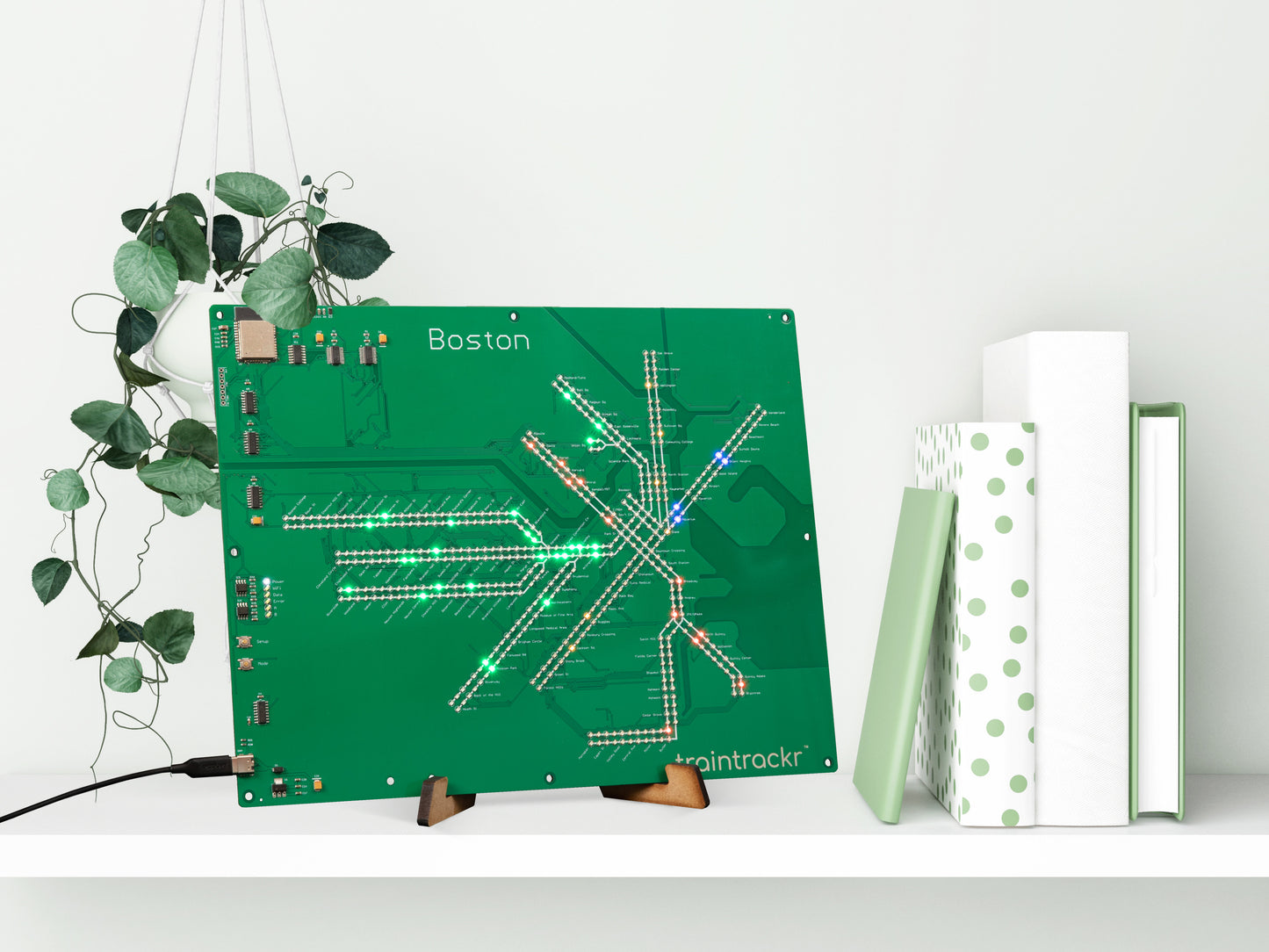

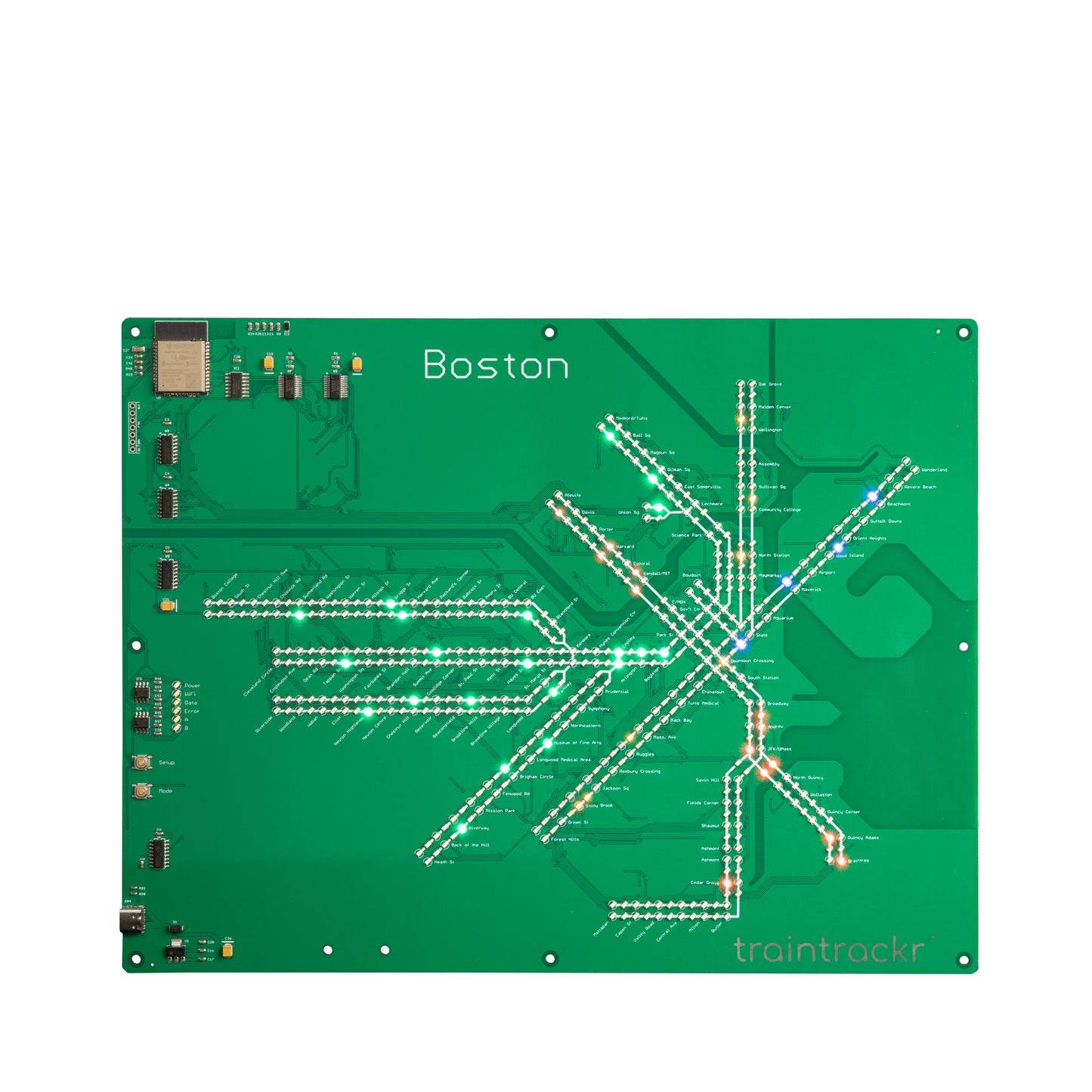

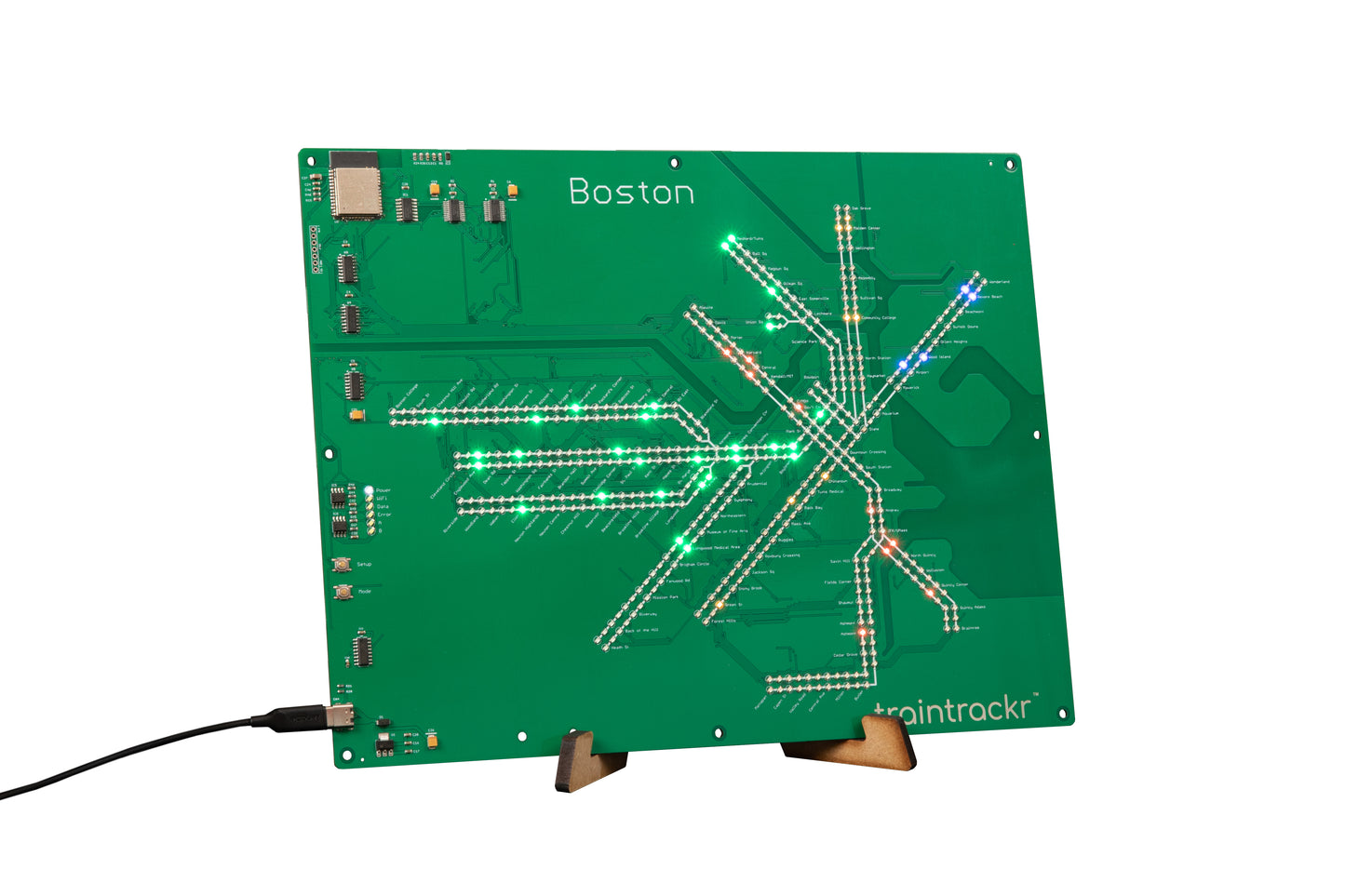

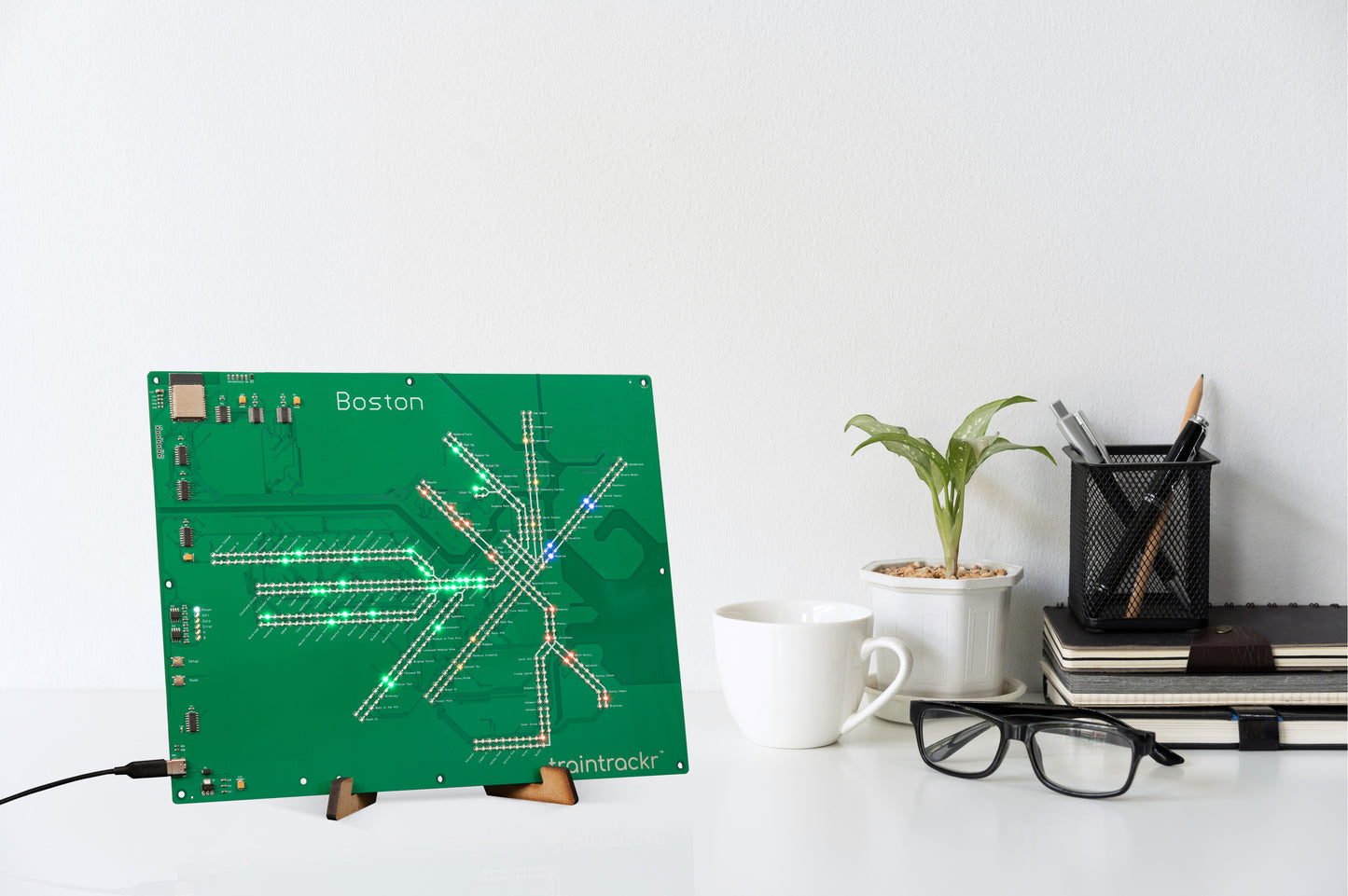

This board shows trains going in both directions to all Red line, Blue line, Orange line and Green line stops

TrainTrackr connects to traintrackr.io servers over wifi to provide live location information, updating train positions every second. Uses 526 Red, Green, Blue, and Orange LEDs.

This board shows trains going in both directions on the Red, Blue, Orange, and Green Lines. Stop with station names are printed onto green board.

Specifications


Connectivity
  • WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
  • Data: Connects to traintrackr server every minute
  • Or connect to your own data sources
Display
  • LED Count: 518
  • LED Type: 0805 Surface Mount
  • LED Size: 2.0mm x 1.25mm
  • LED Colour: Red, Green, Blue, and Orange
  • Brightness control: 16 Level
Power
  • 500mA @ 5V
  • Included: Power supply and Cable
Circuit Board
  • Material: 1.6mm FR-4
  • Size: 285mm x 200mm (11.2in x 7.9in)
  • Colour: Green
Main Components
  • Microcontroller: ESP8266
  • LED Driver: HT16K33
Stand
  • Material: 6mm MDF
  • Laser cut ready to assemble


 What's in the Box?


Package Contains
  • Live Tracker
  • Wooden Stand
  • Power Supply and Cable
  • Setup Instructions

 Maker Friendly


Firmware

  • Flash the chip via FTDI Pins
  • Program using Arduino IDE or similar
  • Reprogrammable!
